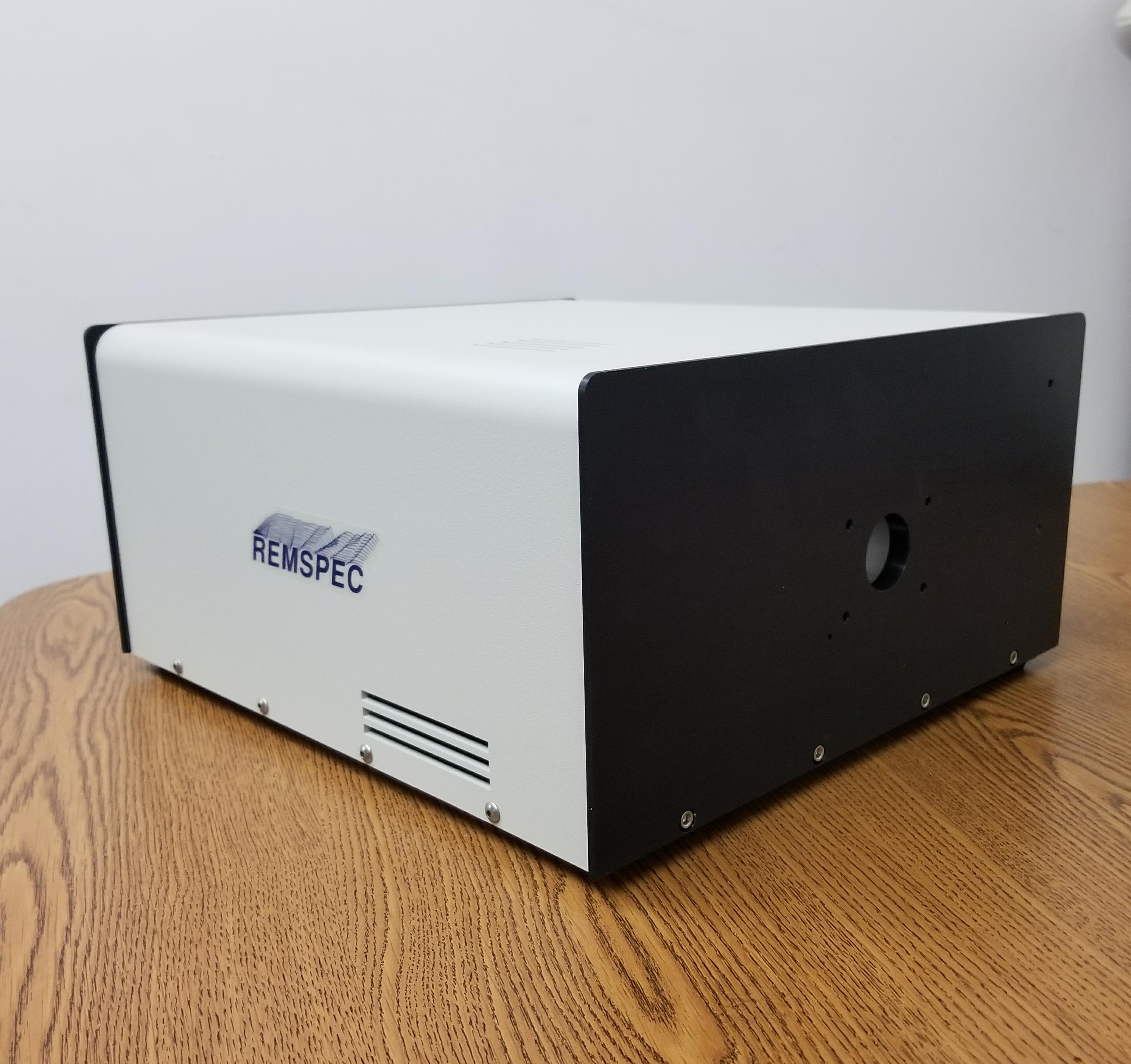

LS-2020™ Interferometer light source

SYSTEMS LS-2020™ ReactionView® ReactionProbe™ TissueView™ ArtView™ SpotView® SpotView®-SL HEADS & REACTORS Probe Heads & Reactors Probe Head Selector SERVICES Cleaning Calibration Coupons On-call cleaning verification Reaction data analysis Training FIBER & CABLES SOFTWARE VizIR™ ReactionSleuth™ CVal™

Small rugged, flexible, portable system for use in custom analytical configurations on optical tables or in process environments. Optical System: Spectral Range: 4500 to 600 cm-1 Optical Resolution: 2 cm-1 - 16 cm-1 Interferometer Proprietary Rocking rooftop interferometer with KBr beam splitter (ZnSe optional for humidity resistance). Source: Air cooled SiC in an integrating sphere. Beam size: 25 mm (1 inch) diameter. Laser: Long life solid-state laser.

Footprint 335 mm x 320 mm x 165 mm (w x d x h) 12.2 kg Electronic System: Power Supply: 100 - 240 VAC in 5 A 24 VDC out Data System: PC with USB connection to system. Automation: Microprocessor controlled optical bench with digital speed and resolution control Operating Environments: Housing: The interferometer is in a sealed, and desiccated housing Operating Temperature: 5 to 30 C Software: VizIR™ or Peak Spectroscopy®
